Toyota Tacoma TRD (2024+) kit de calandre
Toyota Tacoma TRD (2024+) kit de calandre
Impossible de charger la disponibilité du service de retrait
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lightbar within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

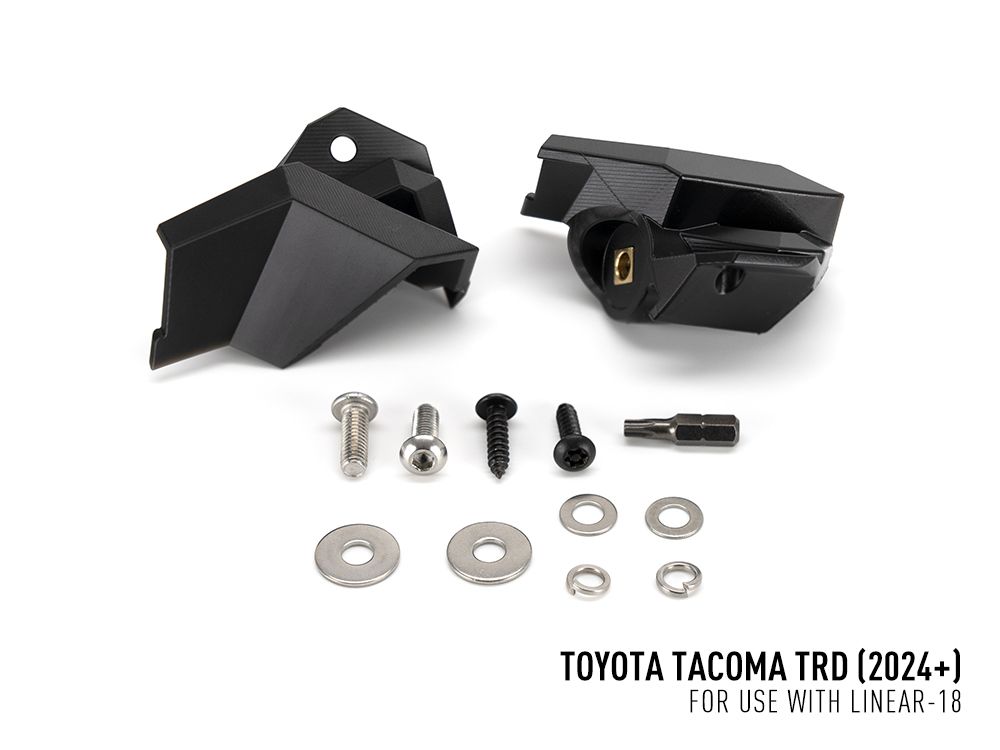

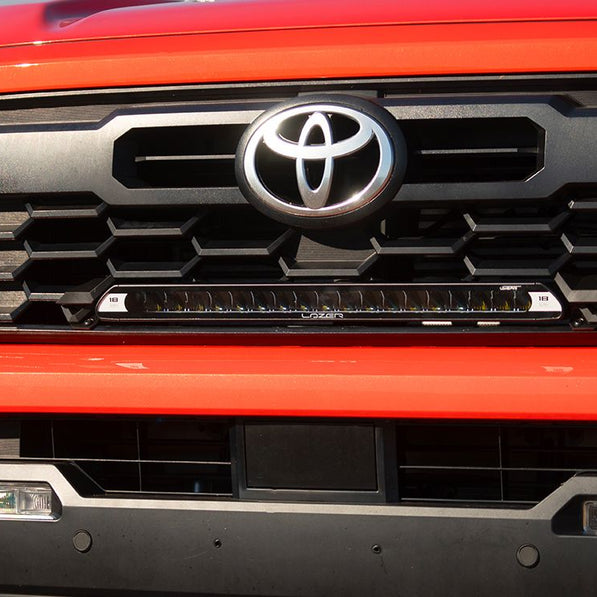

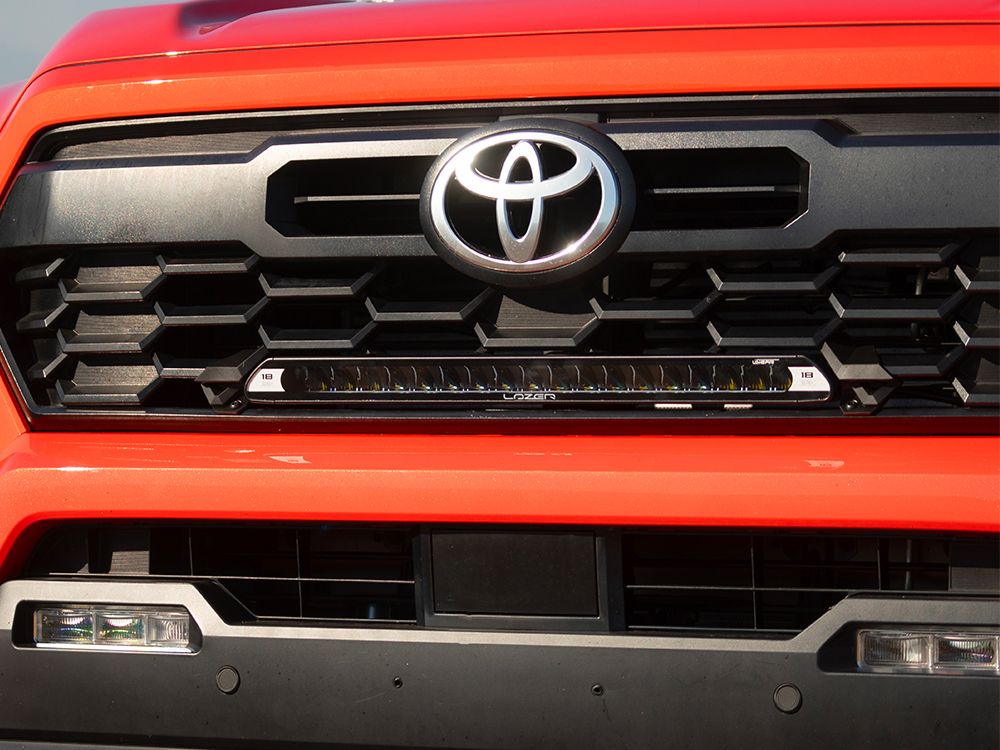

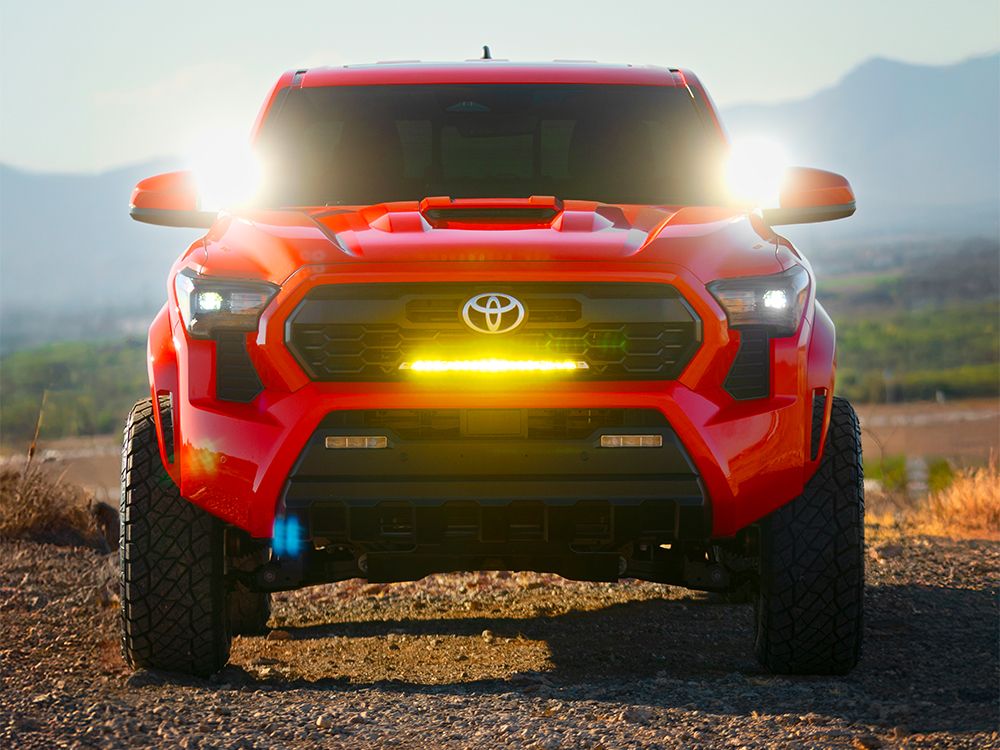

The Toyota Tacoma Kit, for vehicles produced since 2024, includes a Linear-18 (Standard, Elite, Elite+ or Elite with i-LBA) High Performance LED lightbar, plus wiring kit, alongside a pair of brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.
Please note, the Toyota Tacoma TRD (2024+) Grille Integration Kit is carefully engineered and optimised for use with our Linear-18 High Performance LED Lightbar
CE QUI EST INCLUS
- 1x Grille Mounting Kit (Includes cutting guides)
- 1x Linear-18 LED Lamp

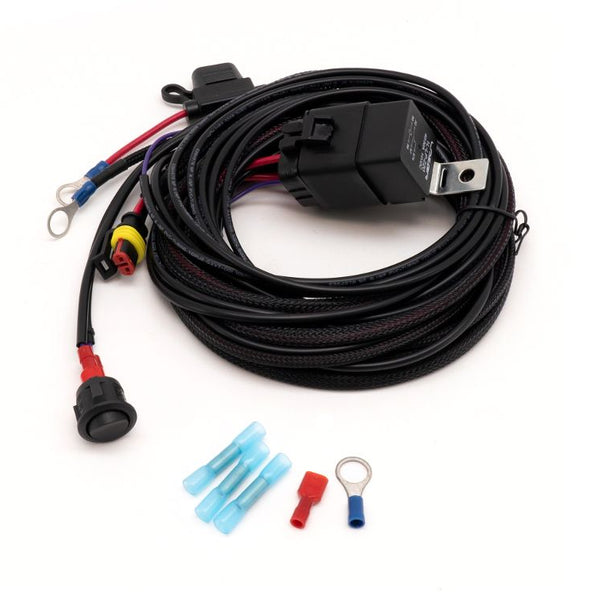

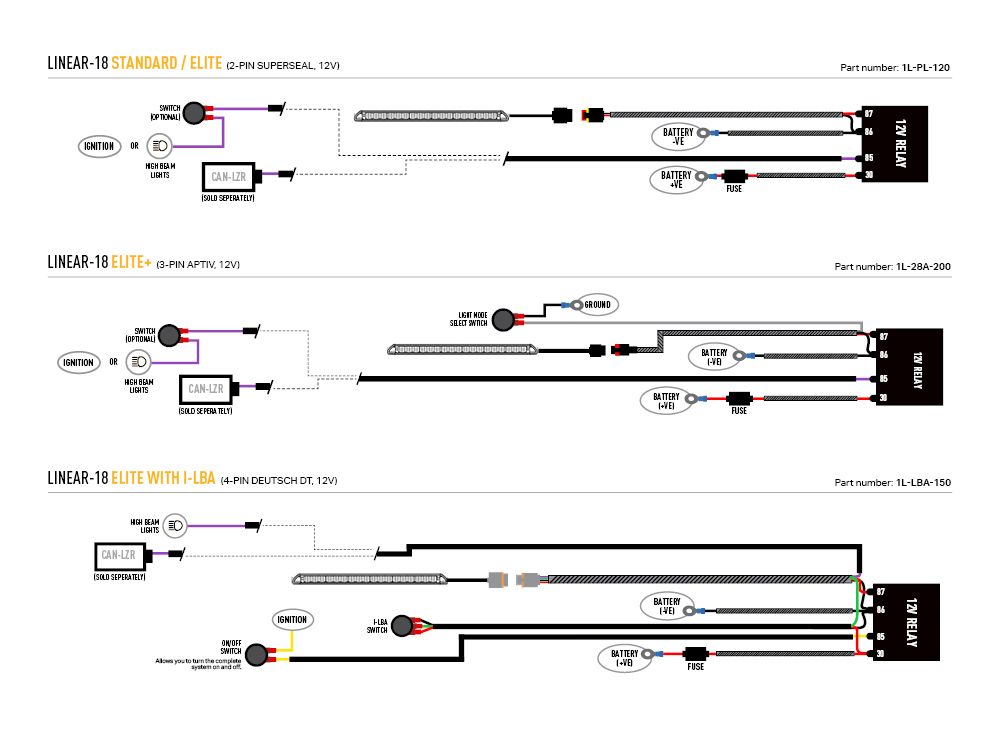

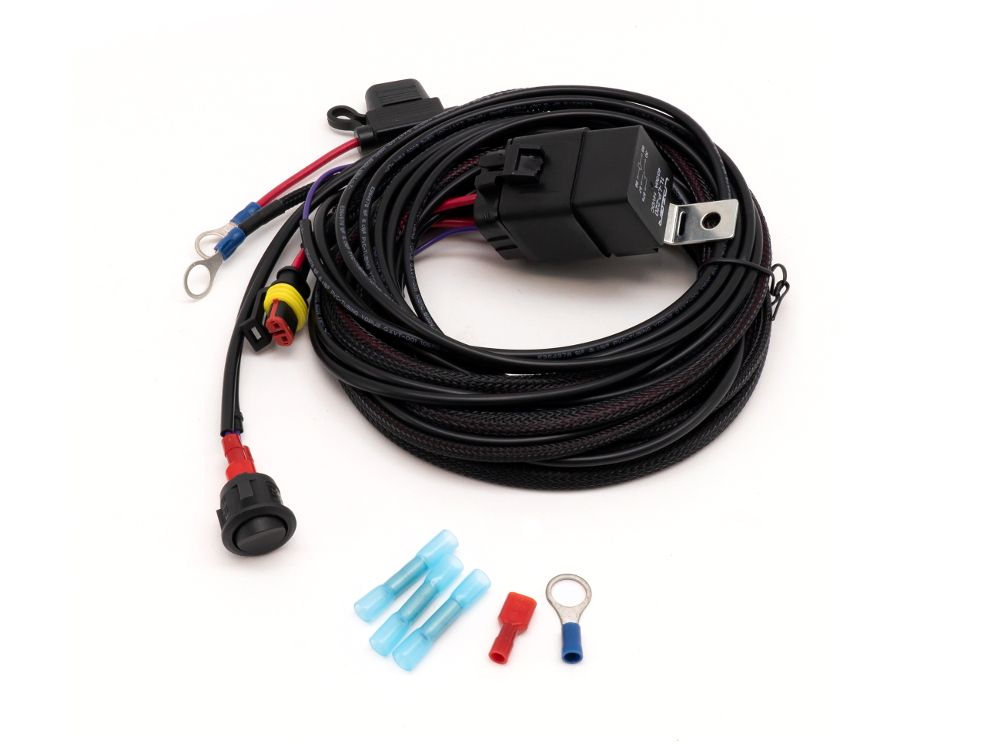

- 1x One-Lamp Wiring Kit
- Installation Instructions
CARACTÉRISTIQUE DU PRODUIT
Bespoke vehicle integration kit for Lazer LED Spotlight installation
Custom fit for Toyota Tacoma TRD (2024+)
Compatible with models: Pre-Runner, Sport and Off-Road
Available with: Linear-18 (Standard, Elite, Elite+ or Elite with i-LBA) LED lightbar
Kit also includes bespoke mounting brackets and wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, composite material
Fully road-legal
5-year warranty
Made in Britain
SPÉCIFICATIONS TECHNIQUES
|
LINEAR-18 |
LINEAR-18 |
LINEAR-18 |
LINEAR-18 |
|
|---|---|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs | 50,000 hrs | 50,000 hrs |
| Weight | 2.4 lbs | 2.4 lbs | 2.4 lbs | 2.4 lbs |
| HIGH BEAM FUNCTION | ||||
| Total Luminous Flux | 6,750 Lm | 12,150 Lm | 14,850 / 4,455 Lm | 18,000 Lm |
| Total Driver 'FOV' Flux † | 4,806 Lm | 8,651 Lm | 10,573 / 3,172 Lm | 12,816 Lm |
| Colour Temperature | 5000K | 5000K | 5000K | 5000K |
| Power Consumption | 63 Watts | 126 Watts | 134 / 39 Watts | 135 Watts |
| Current Draw (14.4V) | 4.4 Amps | 8.8 Amps | 9.9 / 2.7 Amps | 15 Amps |
| Connector | 2-Pin Superseal (+25cm Cable) |
2-Pin Superseal (+25cm Cable) |
3-Pin Aptiv (+25cm Cable) |
4-Pin Deutsch DT (+25cm Cable) |
| CERTIFICATION | ||||
| IP Rating # | IP68 | IP68 | IP68 | IP68 |
| High Beam (e9 approval) | ECE R112 (Ref: 30) | ECE R112 (Ref: 2x 25) | ECE R149 (Ref: 27.5 - Low output mode only) | ECE R112 (Ref: 17.5 - Low output mode only) |
| EMC Certification | ECE R10 | ECE R10 | ECE R10 | ECE R10 |
| Salt Spray Test | ISO 9227 | ISO 9227 | ISO 9227 | ISO 9227 |
| Dump Load Protection | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 |

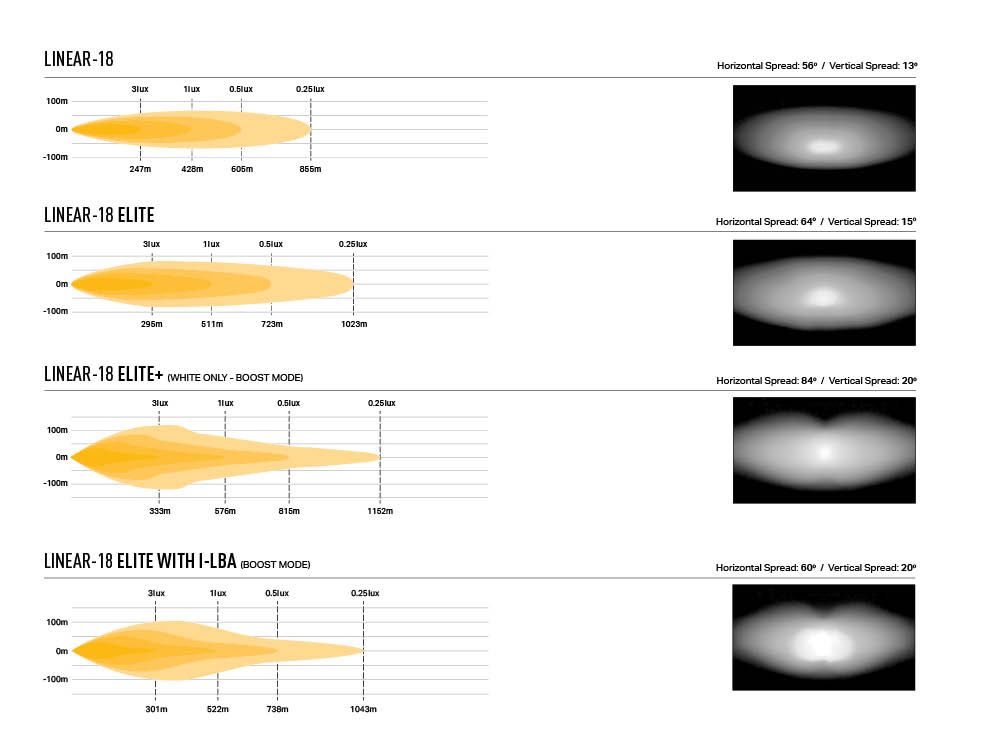

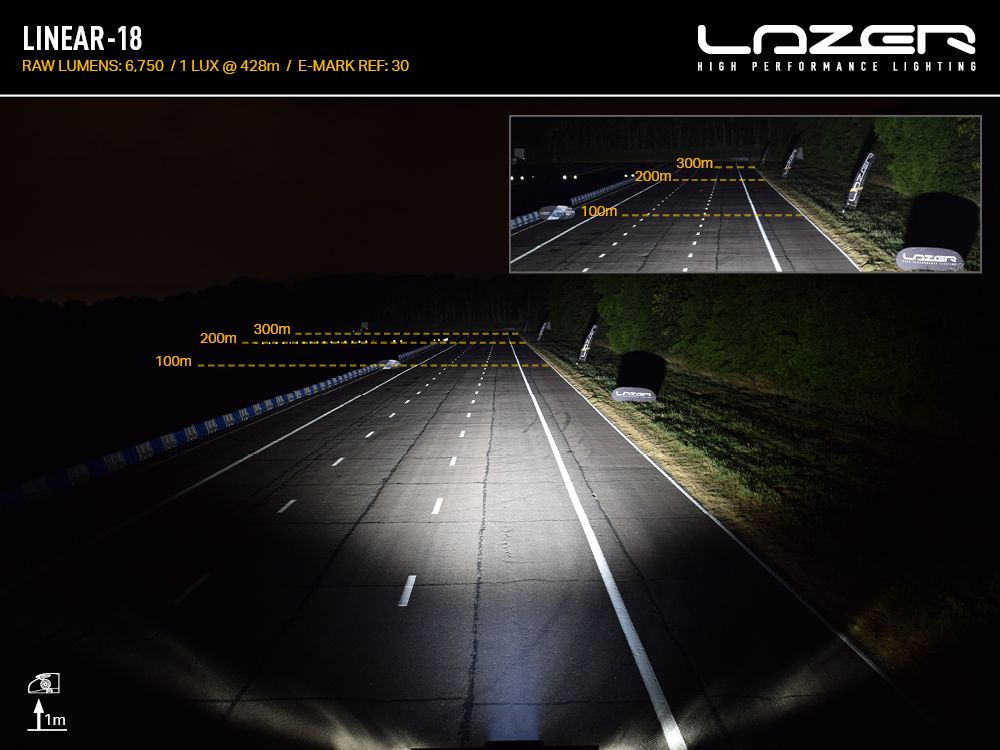

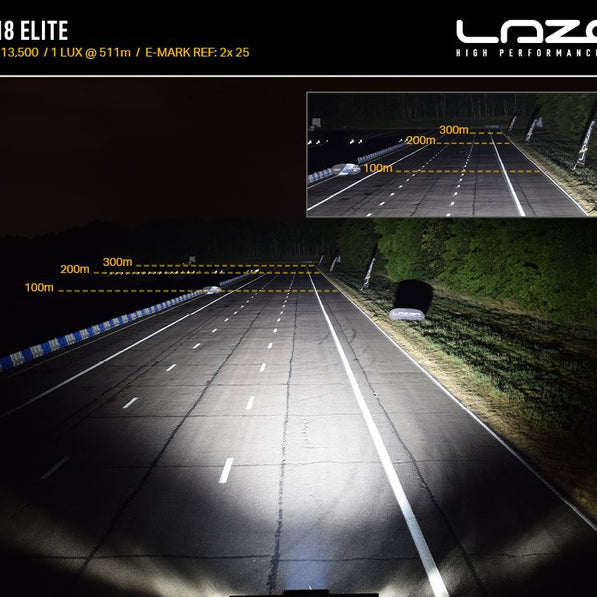

| PHOTOMETRIC DATA | ||||
| Horizontal / Vertical Beam Angle | 56° / 13° | 64° / 15° | 84° / 20° | 60° / 20° |
| 0.25 lx Line | 855m | 975m | 1,152m / 694m | 1,043m |
| 0.5 lx Line | 605m | 690m | 815m / 491m | 738m |
| 1 lx Line | 428m | 488m | 576m / 347m | 522m |
| 3 lx Line | 247m | 282m | 333m / 200m | 301m |
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lightbar within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.
The Toyota Tacoma Kit, for vehicles produced since 2024, includes a Linear-18 (Standard, Elite, Elite+ or Elite with i-LBA) High Performance LED lightbar, plus wiring kit, alongside a pair of brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.
Please note, the Toyota Tacoma TRD (2024+) Grille Integration Kit is carefully engineered and optimised for use with our Linear-18 High Performance LED Lightbar
CE QUI EST INCLUS
- 1x Grille Mounting Kit (Includes cutting guides)
- 1x Linear-18 LED Lamp
- 1x One-Lamp Wiring Kit
- Installation Instructions
CARACTÉRISTIQUE DU PRODUIT
Bespoke vehicle integration kit for Lazer LED Spotlight installation
Custom fit for Toyota Tacoma TRD (2024+)
Compatible with models: Pre-Runner, Sport and Off-Road
Available with: Linear-18 (Standard, Elite, Elite+ or Elite with i-LBA) LED lightbar
Kit also includes bespoke mounting brackets and wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, composite material
Fully road-legal
5-year warranty
Made in Britain
SPÉCIFICATIONS TECHNIQUES
|
LINEAR-18 |
LINEAR-18 |
LINEAR-18 |
LINEAR-18 |
|
|---|---|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs | 50,000 hrs | 50,000 hrs |
| Weight | 2.4 lbs | 2.4 lbs | 2.4 lbs | 2.4 lbs |
| HIGH BEAM FUNCTION | ||||
| Total Luminous Flux | 6,750 Lm | 12,150 Lm | 14,850 / 4,455 Lm | 18,000 Lm |
| Total Driver 'FOV' Flux † | 4,806 Lm | 8,651 Lm | 10,573 / 3,172 Lm | 12,816 Lm |
| Colour Temperature | 5000K | 5000K | 5000K | 5000K |
| Power Consumption | 63 Watts | 126 Watts | 134 / 39 Watts | 135 Watts |
| Current Draw (14.4V) | 4.4 Amps | 8.8 Amps | 9.9 / 2.7 Amps | 15 Amps |
| Connector | 2-Pin Superseal (+25cm Cable) |
2-Pin Superseal (+25cm Cable) |
3-Pin Aptiv (+25cm Cable) |
4-Pin Deutsch DT (+25cm Cable) |
| CERTIFICATION | ||||
| IP Rating # | IP68 | IP68 | IP68 | IP68 |
| High Beam (e9 approval) | ECE R112 (Ref: 30) | ECE R112 (Ref: 2x 25) | ECE R149 (Ref: 27.5 - Low output mode only) | ECE R112 (Ref: 17.5 - Low output mode only) |
| EMC Certification | ECE R10 | ECE R10 | ECE R10 | ECE R10 |
| Salt Spray Test | ISO 9227 | ISO 9227 | ISO 9227 | ISO 9227 |
| Dump Load Protection | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 |
| PHOTOMETRIC DATA | ||||
| Horizontal / Vertical Beam Angle | 56° / 13° | 64° / 15° | 84° / 20° | 60° / 20° |
| 0.25 lx Line | 855m | 975m | 1,152m / 694m | 1,043m |
| 0.5 lx Line | 605m | 690m | 815m / 491m | 738m |
| 1 lx Line | 428m | 488m | 576m / 347m | 522m |
| 3 lx Line | 247m | 282m | 333m / 200m | 301m |
